QUIET & POWERFUL PERFORMANCE: 1.5 sones Super-quiet operation and 80 CFM strong air movement and effectively supports moisture removal. Suitable for bathrooms up to 80 Sq. Ft. or Large rooms. Recommended for use with 4-inch ducting.

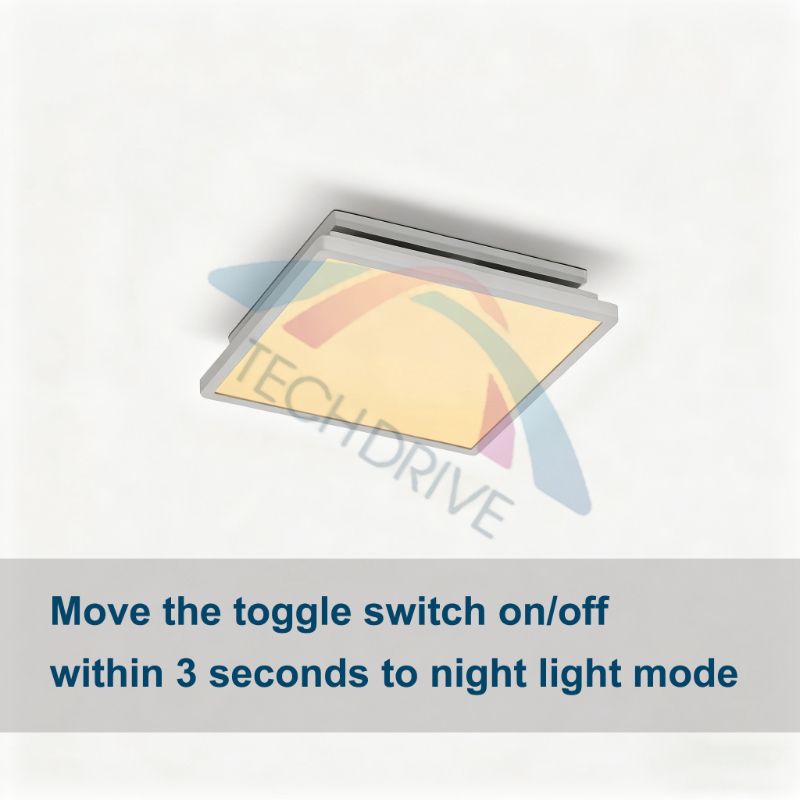

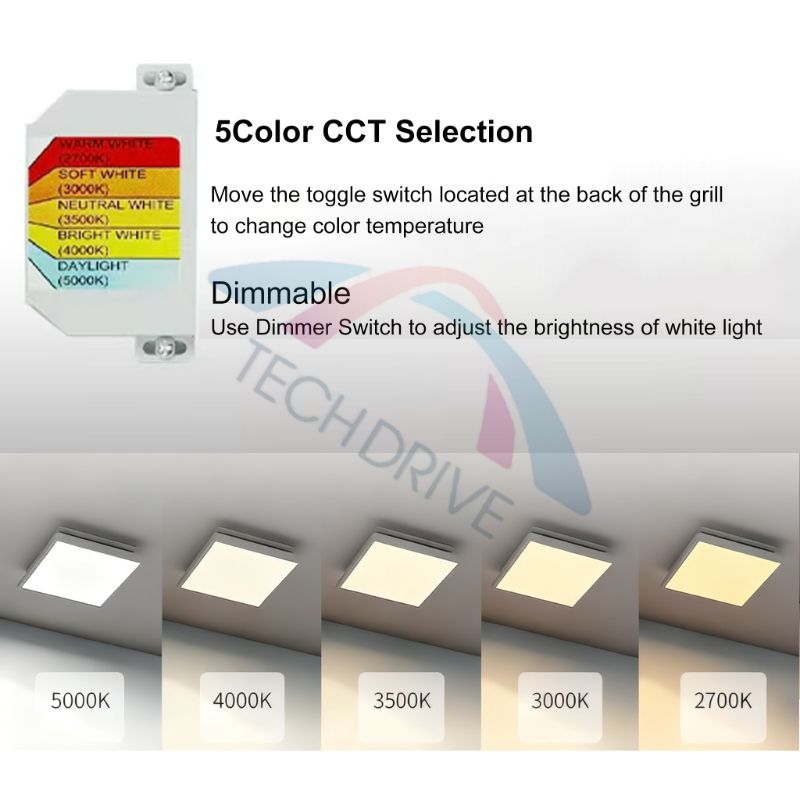

1000LM DIMMABLE 5CCT LED LIGHT & NIGHT LIGHT: Bright 1000lm dimmable LED light illuminates the entire bathroom, featuring 5 adjustable color temperatures(2700K / 3000K / 3500K / 4000K / 5000K). Move the toggle switch on the back of the grill to change color temperature; use a dimmer switch to adjust white light brightness. NOTE: Toggle the wall switch on and off within 3 seconds to activate Night Light mode.

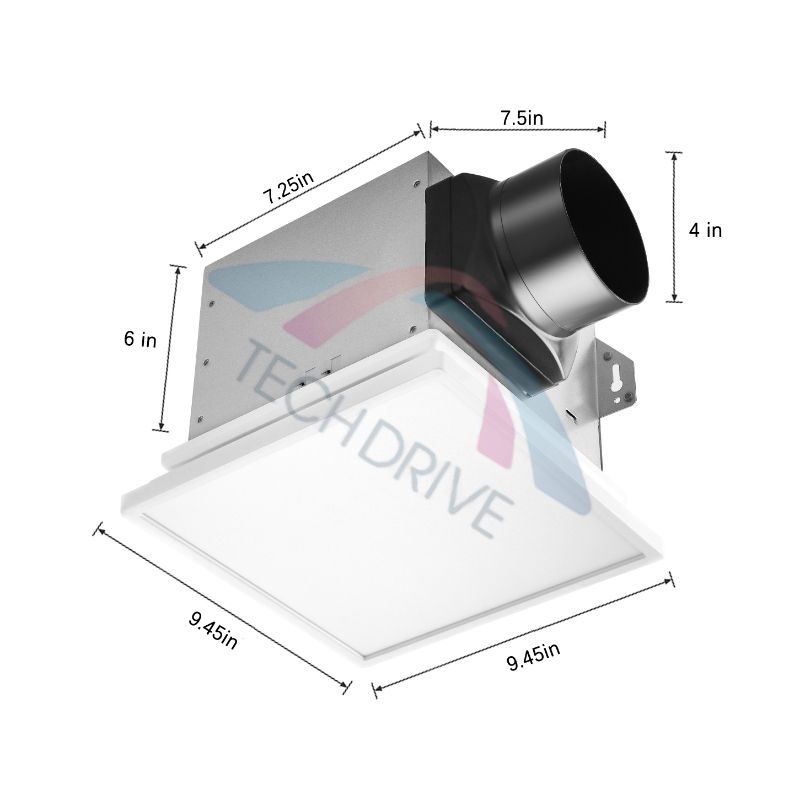

NO ATTIC ACCESS REQUIRED – EASY ROOMSIDE INSTALLATION: No-cut housing design allows installation entirely from the ceiling side (fits standard 7.6 in x 7.3 in openings). Housing specs: 7.5 in x 7.25 in x 6 in (compatible with 4-inch duct). Note: Housing height is 6 inches – ensure sufficient ceiling depth when replacing old 4-inch housing fans.
HIGH-EFFICIENCY MOTOR & SAFETY CERTIFIED: 80 CFM efficient performance with 25, 000+ hour motor life. Equipped with two built-in thermal protection devices that automatically shut off the unit when overheating, reducing fire risk. ABS plastic low-profile white grill and galvanized steel housing resist corrosion, complying with UL North American safety standards. Acceptable for use over bathtubs or showers with a GFCI-protected branch circuit.



| Model | CFM | Sones | Approved | Motor | Material | Ceiling Opening | Ceiling Opening | Power (W) | Duct Size | Grille dimension(cm&inch) | Housing dimension(cm&inch) | Master Pack(cm) pcs/ctn | ||
| Fan housing | Grille | Blower wheel | ||||||||||||
| FA-BF-03-L(WH) | 80 | 1.5 | UL/CUL,HVI, Energy Star | AC | steel plate | ABS | PP | 1.With LED light 11W, 2700K, 3000K, 3500K, 4000K, 5000K, 1000LM, Dimmable 2. 2700K Night Light |
7.6 in. (L) x 7.3 in. (W) x 6.2 in. (H) | 19 | 4" | 24*24cm 9.45"*9.45" | 19.5*18.4*17.7cm 7.5"*7.25"*6" | 34.5x27.5x27.5 1pc/ctn |
