VF-BF-13L: 0.8 sones ultra-quiet operation and 130 CFM strong air movement, effectively supports moisture removal. Suitable for bathrooms up to 135 Sq. Ft. or large rooms.
VF-BF-14L: 1.0 sones super-quiet operation and 160 CFM strong air movement, effectively supports moisture removal. Suitable for bathrooms up to 135 Sq. Ft. or large rooms.Both models are recommended for use with 6-inch ducting.

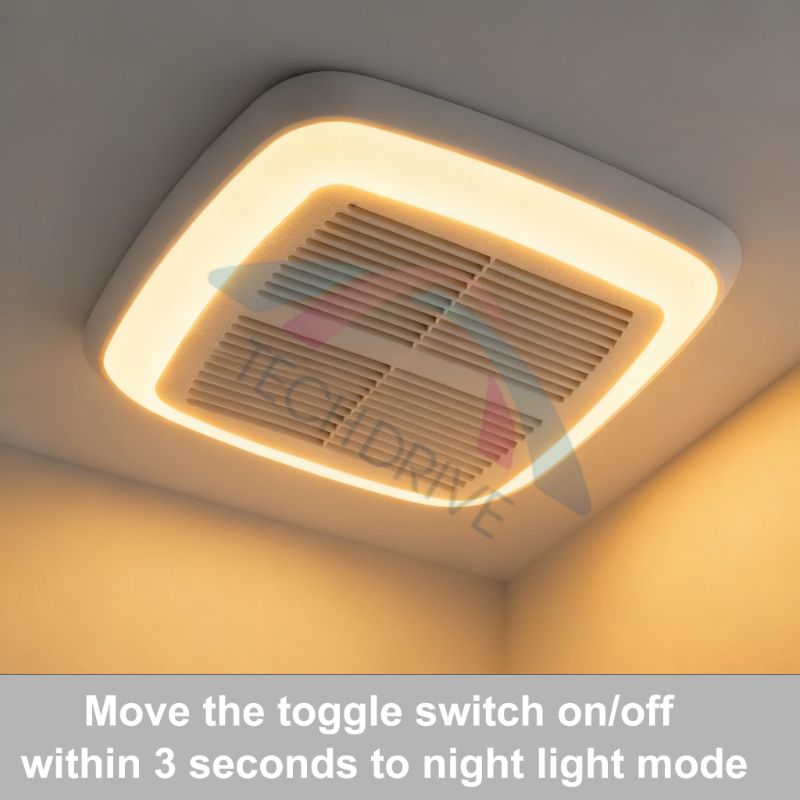

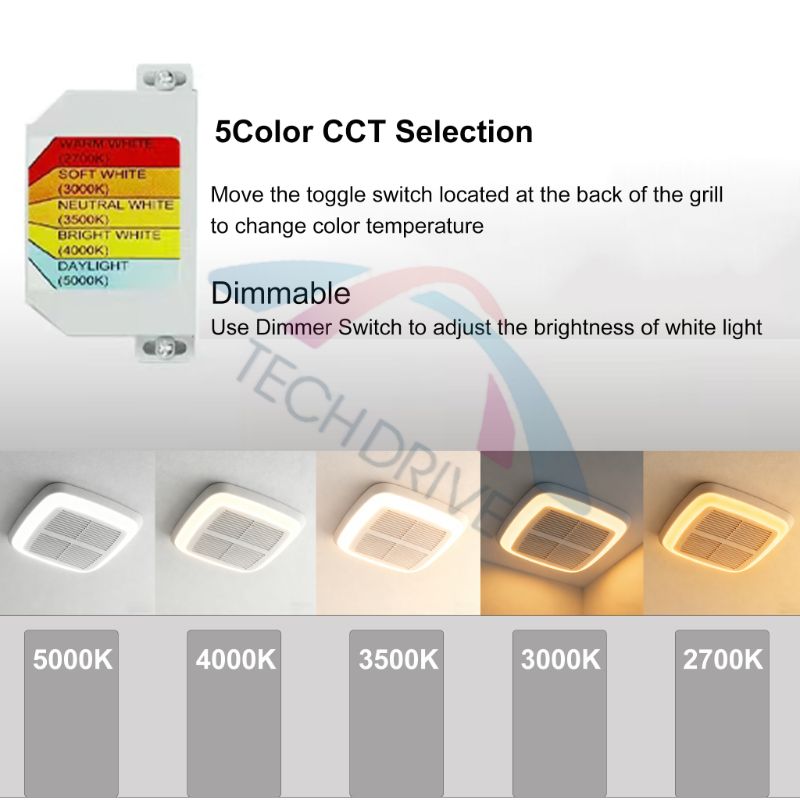

Both VF-BF-13L and VF-BF-14L feature a bright 1000lm dimmable LED light that illuminates the entire bathroom, with 5 adjustable color temperatures (2700K/3000K/3500K/4000K/5000K). Move the toggle switch on the back of the grill to change color temperature; use a dimmer switch to adjust white light brightness. NOTE: Toggle the wall switch on and off within 3 seconds to activate Night Light mode for both models.

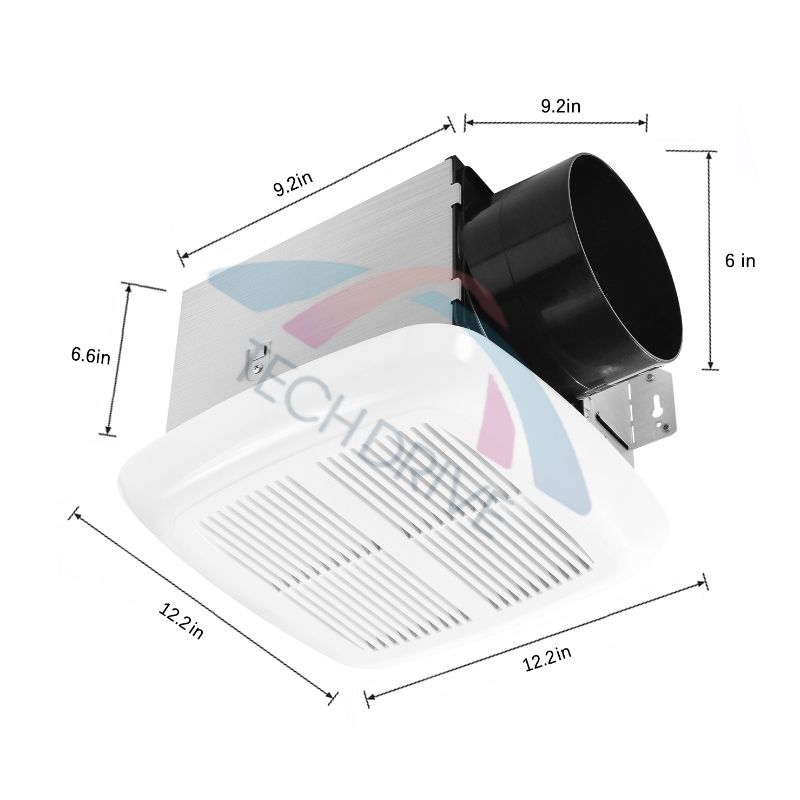

For VF-BF-13L and VF-BF-14L, the innovative edge-wrapping process for the housing edges enhances sturdiness. A snap-on air outlet duct design simplifies assembly and use. The consistent housing dimensions for both models are 9.2 in x 9.2 in x 6.6 in (6-inch duct included), with a ceiling mounting opening of 9.5 in x 9.5 in.
New Construction: For both VF-BF-13L and VF-BF-14L, attach the fan housing to ceiling joists for spacing under 12 in. Suspension brackets can be used for joist spacing between 16 in. - 24 in.
Existing Construction: No attic access required for either model – both replace most existing bathroom fans and can be installed entirely from the ceiling side.
VF-BF-13L: 130 CFM efficient performance with 25, 000+ hour motor life.
VF-BF-14L: 160 CFM efficient performance with 25, 000+ hour motor life.Both models are equipped with two built-in thermal protection devices that automatically shut off the unit when overheating, reducing fire risk. They feature ABS plastic low-profile white grills and galvanized steel housings that resist corrosion, complying with ETL North American safety standards. Both are acceptable for use over bathtubs or showers with a GFCI-protected branch circuit.

| Model | CFM | Sones | Approved | Motor | Material | Ceiling Opening | Ceiling Opening | Power (W) | Duct Size | Grille dimension(cm&inch) | Housing dimension(cm&inch) | Master Pack(cm) pcs/ctn | ||
| Fan housing | Grille | Blower wheel | ||||||||||||
| VF-BF-13L | 130 | 0.8 | ETL | AC | steel plate | ABS | PP | 1.With LED light 11W, 2700K, 3000K, 3500K, 4000k, 5000k, 1000LM, Dimmable 2. 2700K Night Light |
9.5 in. (L) x 9.5 in. (W) x 7 in. (H) | 29 | 6“ | 30.99*30.99cm 12.2"*12.2" | 23.37*23.37*16.76cm 9.2"*9.2"*6.6" | 41.3x33.8x26.5 |
| VF-BF-14L | 160 | 1.0 | ETL | AC | steel plate | ABS | PP | 1.With LED light 11W, 2700K, 3000K, 3500K, 4000k, 5000k, 1000LM, Dimmable 2. 2700K Night Light |
38 | 6“ | 30.99*30.99cm 12.2"*12.2" | 23.37*23.37*16.76cm 9.2"*9.2"*6.6" | 41.3x33.8x26.5 | |
