Ultra-Quiet 60/80/90/110 CFM 3CCT LED Bathroom Exhaust Fan Series

The TD-BF-05L-3CCT, TD-BF-08L-3CCT, TD-BF-12L-3CCT, and TD-BF-20L-3CCT series combines bathroom ventilation and ceiling lighting in one practical product platform.

Available in 60 CFM, 80 CFM, 90 CFM, and 110 CFM airflow options, this series helps distributors, private-label brands, contractors, and project buyers build a complete LED bathroom fan range for different bathroom sizes. Every model includes a 1000 lm dimmable LED light with 3 selectable color temperatures, low-sone performance, a 4-inch duct connection, and ETL certification.

Designed for ceiling-mounted applications, the series supports roomside installation for renovation and replacement projects where attic access is limited or unavailable.

Key Product Advantages

• Four airflow options: 60 CFM, 80 CFM, 90 CFM, and 110 CFM
• Low-noise performance from 0.3 to 1.5 Sones
• 1000 lm dimmable integrated LED light
• 3CCT selectable lighting: 3000K, 4000K, and 5000K
• 4-inch duct connection across all models
• ETL-certified product series
• Ceiling-mounted configuration
• Roomside installation with no attic access needed
• Galvanized steel housing
• Low-profile white ABS grille
• PP blower wheel
• Snap-on duct outlet design
• Two built-in thermal protection devices
• Motor operating life specified at more than 25,000 hours
• Suitable for residential, apartment, hotel, renovation, and private-label programs

Product Overview

This 3CCT LED bathroom exhaust fan series is designed for customers who need both ventilation and ceiling lighting in a single unit. By combining multiple airflow levels with the same lighting configuration and installation platform, the series offers a practical solution for different bathroom sizes without requiring several unrelated product structures.

The built-in dimmable LED light supports three color temperature options:

• 3000K Warm White
• 4000K Natural White
• 5000K Cool White

This helps product buyers offer flexible bathroom lighting options for different interior styles, residential renovation programs, apartment projects, hotels, and retail bathroom fan ranges.

Model Comparison

Bathroom size is only one factor in fan selection. Final selection should also consider shower usage, moisture load, duct routing, duct length, local building requirements, and installation conditions.

Select the Right CFM for Your Bathroom Fan Program

60 CFM 3CCT LED Bathroom Fan

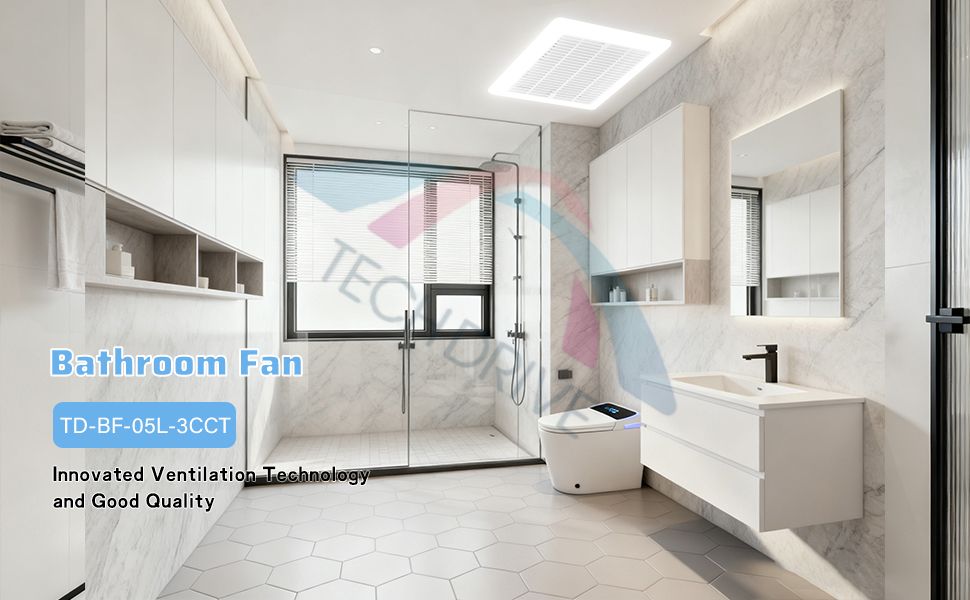

The TD-BF-05L-3CCT is designed for compact bathrooms, powder rooms, guest bathrooms, and small apartment units. With 0.3 Sones operation, it is the quietest model in the series.

80 CFM 3CCT LED Bathroom Fan

The TD-BF-08L-3CCT provides a practical airflow level for standard residential bathrooms, rental-property maintenance programs, and common renovation projects.

90 CFM 3CCT LED Bathroom Fan

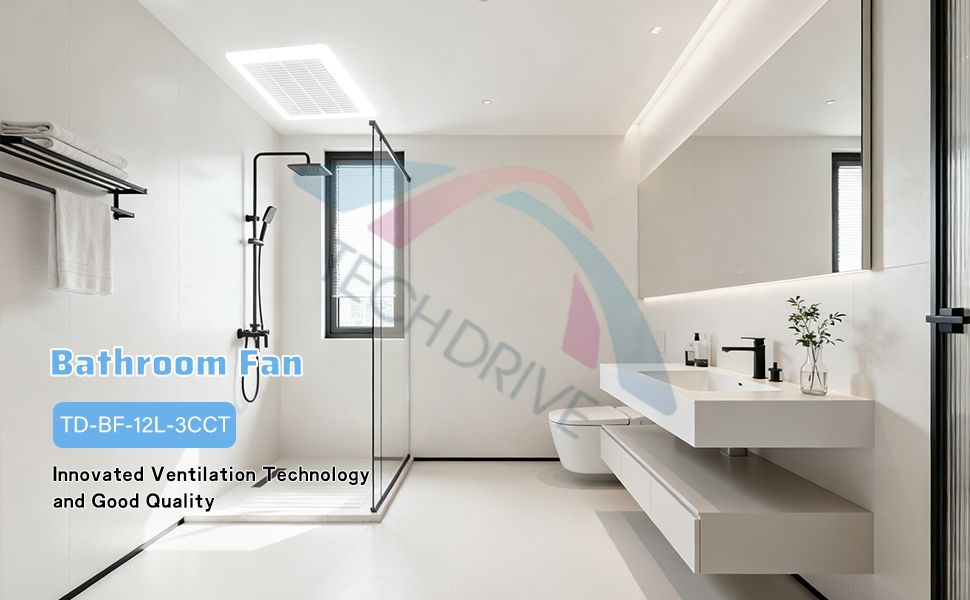

The TD-BF-12L-3CCT is suitable for medium-size bathrooms where slightly higher airflow is required while maintaining a compact 4-inch duct configuration.

110 CFM 3CCT LED Bathroom Fan

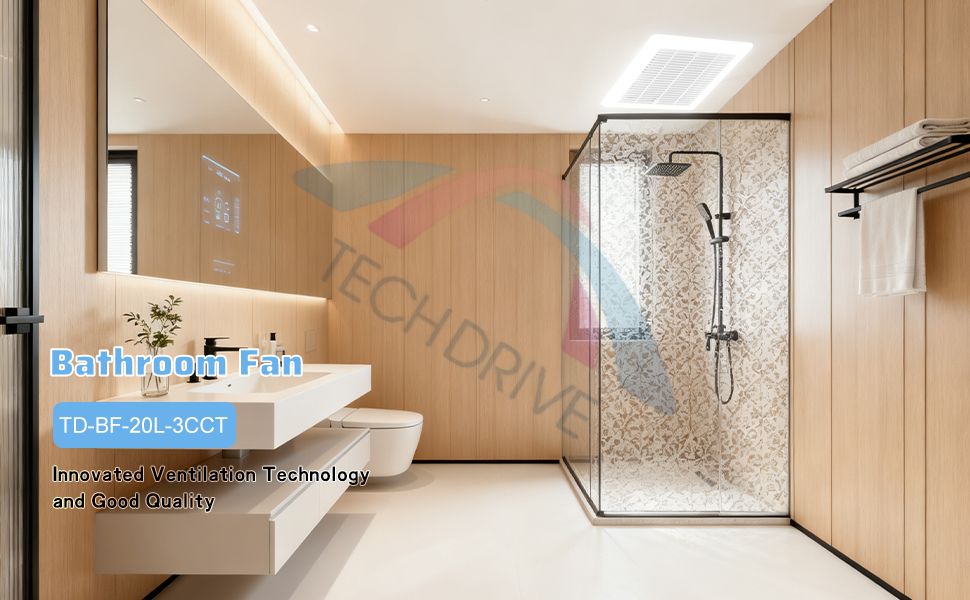

The TD-BF-20L-3CCT is designed for larger residential bathrooms, master bathrooms, apartment projects, and applications requiring stronger moisture removal.

1000 lm Dimmable 3CCT LED Lighting

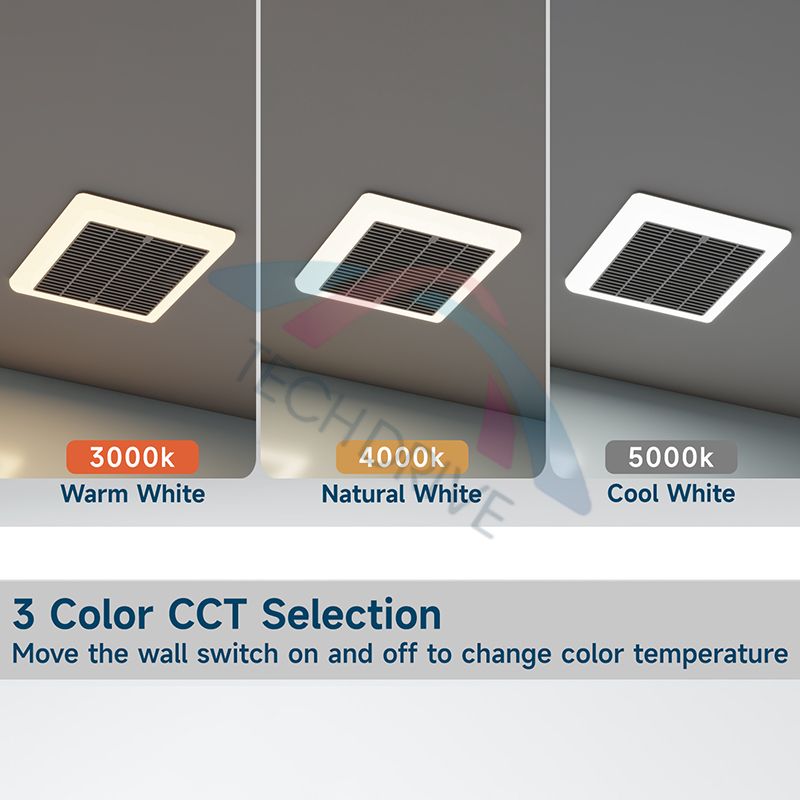

Every model in this series includes an integrated 1000 lm dimmable LED light. The 3CCT function allows installers or end users to select from warm, natural, or cool lighting tones according to the bathroom design and lighting preference.

Available color temperatures include:

• 3000K Warm White for warmer residential interiors
• 4000K Natural White for balanced daily lighting
• 5000K Cool White for brighter, cleaner visual environments

The color temperature can be changed by switching the wall control off and then on within three seconds. For clearer function control, separate wall switches for the ventilation fan and LED light are recommended.

This series is suitable for projects requiring:

• Bathroom ventilation and lighting in one ceiling unit
• Flexible color temperature selection
• Dimmable bathroom lighting
• Low-profile ceiling appearance
• Simplified product selection for different bathroom sizes

Roomside Installation with No Attic Access Needed

All models in this series are designed for roomside installation from below the ceiling. This is particularly useful for renovation and replacement projects where attic access is unavailable or inconvenient.

Common installation features include:

• Ceiling-mounted installation
• 4-inch duct connection

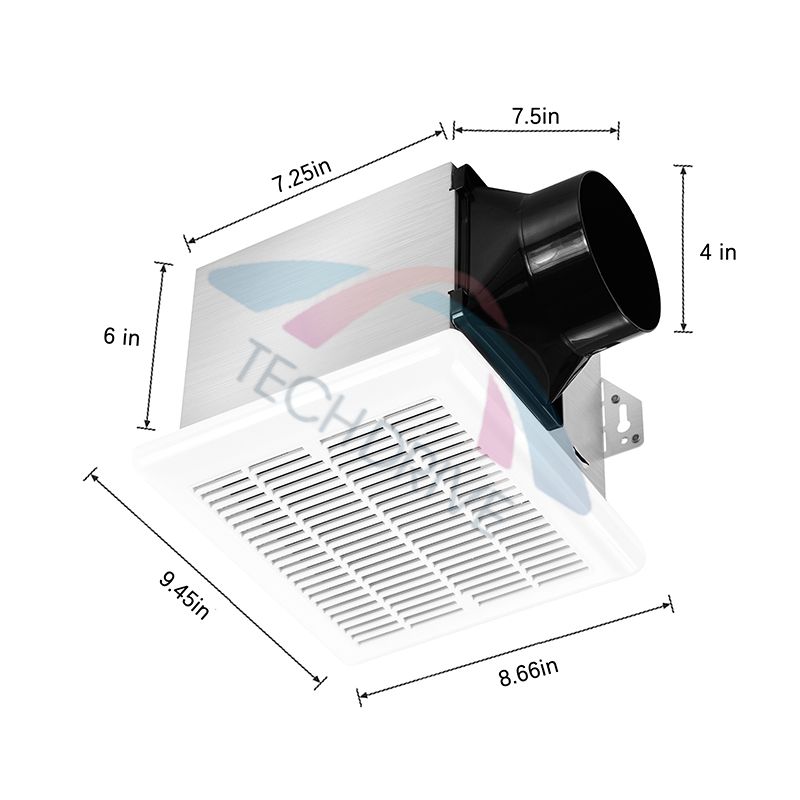

• Approximate ceiling opening: 7.8 × 7.5 inches
• Housing dimensions: approximately 7.5 × 7.25 × 6 inches
• Grille dimensions: approximately 9.45 × 8.66 inches
• Sufficient ceiling depth should be confirmed before installation
• Existing duct position, ceiling opening, electrical connection, and local code requirements should be checked before product selection

For installations over a bathtub or shower, applicable electrical and building requirements must be followed. This series is suitable for these applications when installed on a GFCI-protected branch circuit.

Durable Housing and Safety Protection

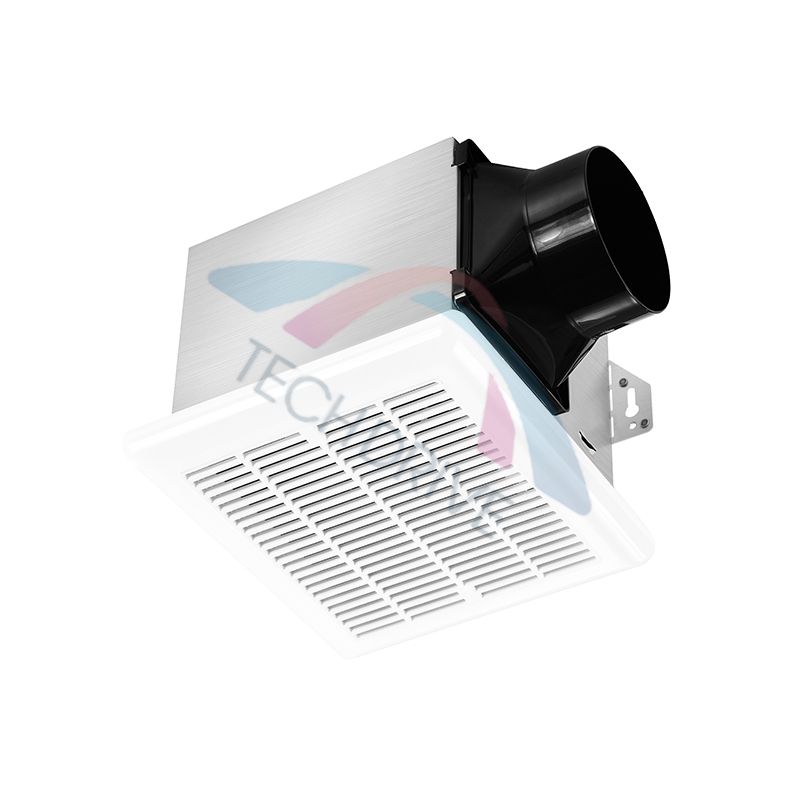

The TD-BF-05L-3CCT, TD-BF-08L-3CCT, TD-BF-12L-3CCT, and TD-BF-20L-3CCT series uses a galvanized steel housing designed for long-term bathroom ventilation applications.

Product construction includes:

• Galvanized steel housing
• Low-profile white ABS grille
• PP blower wheel
• Edge-wrapping housing structure for improved strength
• Snap-on duct outlet design
• Two built-in thermal protection devices

The thermal protection devices are designed to automatically shut off the unit if an elevated operating temperature is detected, helping reduce overheating risk during extended operation.

Technical Specifications

Applications

This 3CCT LED bathroom fan series is suitable for:

• Residential bathrooms
• Guest bathrooms
• Master bathrooms
• Apartment and condominium projects
• Rental-property maintenance
• Hotel bathroom upgrades
• Bathroom renovation programs
• Contractor supply programs
• Home-improvement retail product lines
• Electrical distributor product ranges
• Private-label ventilation programs

A Practical LED Fan Series for Brands and Distributors

For product brands, importers, and distributors, this series provides a single platform with four commonly requested airflow levels. The shared housing, grille style, duct size, lighting output, and 3CCT function can help simplify product-line planning.

This series is suitable for customers looking to develop:

• A multi-CFM LED bathroom fan range
• Quiet bathroom ventilation product lines
• Renovation-focused ceiling fan products
• Private-label bathroom lighting and ventilation programs
• Retail-ready bathroom upgrade products
• Apartment or hotel renovation fan solutions

For OEM or private-label projects, final availability depends on the selected product platform, order quantity, requested branding, target market, and certification requirements.

How to Select the Right Model

Choose the 60 CFM model for compact bathrooms and projects that prioritize ultra-quiet operation. Choose 80 CFM or 90 CFM models for common residential bathrooms. Choose the 110 CFM model for larger bathrooms or projects with higher ventilation needs.

Before selecting a model, confirm:

• Bathroom size
• Required airflow level
• Noise requirement
• Existing or planned duct size
• Ceiling opening dimensions
• Available ceiling depth
• Required LED light function
• Preferred color temperature setting
• Target market certification requirements
• Required order quantity
• Packaging and private-label requirements

Request Product Information

Tell us your target market, required CFM range, preferred lighting function, duct size, certification requirement, expected order quantity, and branding needs.

Our team can recommend suitable models from the TD-BF-05L-3CCT, TD-BF-08L-3CCT, TD-BF-12L-3CCT, and TD-BF-20L-3CCT series, or suggest other bathroom exhaust fan platforms for your distribution, private-label, or project program.

Frequently Asked Questions

What CFM options are available in this LED bathroom fan series?

This series includes 60 CFM, 80 CFM, 90 CFM, and 110 CFM models.

Do all models include a 3CCT LED light?

Yes. Every model includes a 1000 lm dimmable LED light with 3000K, 4000K, and 5000K selectable color temperatures.

What is the quietest model in this series?

The TD-BF-05L-3CCT is rated at 0.3 Sones and is the lowest-noise model in this series.

Do all models use a 4-inch duct connection?

Yes. All four models use a 4-inch duct connection.

Does this series require attic access for installation?

No. All models are designed for roomside installation from below the ceiling.

Are these 3CCT LED bathroom fans ETL certified?

Yes. The TD-BF-05L-3CCT, TD-BF-08L-3CCT, TD-BF-12L-3CCT, and TD-BF-20L-3CCT series is listed as ETL certified.

Can this series support private-label programs?

Yes. This series can be discussed for private-label, distribution, and project supply programs. Please share your target market, expected quantity, branding requirements, and preferred product configuration.
